Tubing Products | Viton® Tubing

Viton Tubing

Viton® is a proprietary type of fluoroelastomer rubber, manufactured by DuPont Industries.

Viton® has one of the broadest ranges of chemical resistance in industry.

We use Viton® B grade, which is regarded as an ideal type for peristaltic pump use. This combines excellent flexibility with high chemical resistance and anti-ageing properties over a wide range of environmental conditions.

Viton® B is specified as a terpolymer of vinylidene fluoride, hexafluoropropylene and tetrafluoroethylene and has a higher fluid resistance than Viton® A.

Viton® B is not a medical class material, and the resultant extruded tubing is ideal for many industrial applications involving acids and oils.

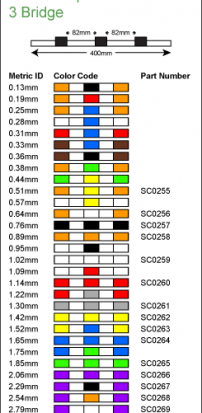

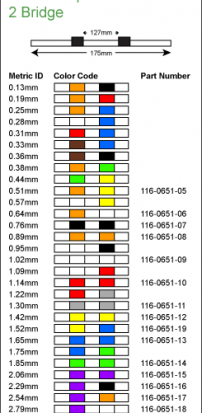

Viton Tubing Bridge Charts

Viton® Tubing General Product Information

Product

  • DuPont Viton® B Fluoroelastomer

Full Name

  • Viton®

Application

  • Industrial & Laboratory
  • Ideal for Fuel and Oil Lines
  • Aromatic Oils

Characteristics

  • Exceptional Chemical Resistance
  • Excellent Flexibility
  • Wide Temperature Range
  • Good Peristaltic Pumping Characteristics
  • Excellent Anti-Ageing Properties
  • Environmentally Tough

Temperature Range

  • -20°C to +200°C (-4°F to +392°F)

Sterilizations

  • Not Recommended

Hardness

  • 60 Shore A
  • 70A on 6mm ID and above

Elongation at Break

  • 150% – 250%

Certification

  • Viton® is a Registered Trade Mark of DuPont Industries
